30Mpa High Pressure Ammonia Gas Booster Compressor About
Product Introduction
20Mpa 30 Mpa Reciprocating Piston Compressor high pressure ammonia compressor
Note: for the other customizing process gas compressor, please kindly send below information to our factory to calculate the producing cost for you
A. The gas compression medium (eg.: the purity of air, oxygen gas, Hydrogen gas, Nitrogen gas. Or the gas composition of flammable & toxin gas)
B. The flow rate: _____Nm3/hr
C. Suction pressure: _____ Bar
D. Exhaust pressure: _____ Bar
E. Suction temperature
F. Discharge temperature
G. Requiring for Cooling water temperature as well as end discharge temperature
H. Local plant's Voltage/Frequency/Phase; _____V____Hz____ph ?
Product Details Show

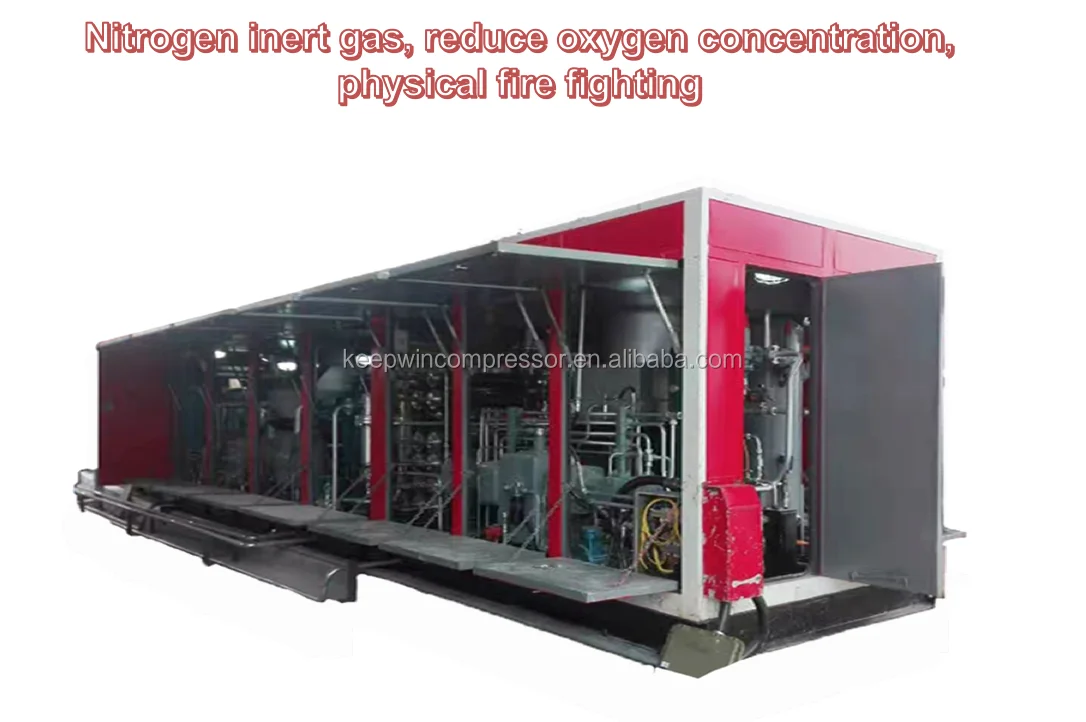

No pollution for climate. Clean fire extinguishing gas.
Suitable for fighting fires in underground warehouses, subways,
railway tunnels, control rooms, computer rooms, libraries, communication equipment, substations, key cultural relics protection
areas and other places.
A Special Process Gas Compressor Order Process & Production process
Factory 24hours at least Operation Test
Product Parameters
|
20Mpa 30 Mpa Reciprocating Piston Compressor high pressure ammonia compressor
|
|
Compress Medium
|
AmmoniaA gas
|
|
Model No.
|
LGAAAV-20/10-200
|
|
Type
|
V/W type Reciprocating piston compressor + low pressure screw air compressor
|
|
Rated flow rate (F.A.D)
|
15m3/min or 20m3/min or other capacity
|
|
Power
|
360KW
|
|
Suction pressure(G)
|
0.1Mpa
|
|
Rated outlet pressure
|
15Mpa 20Mpa
|
|
Lubricating mode
|
Oil lubricattype
|
|
Transmission mode
|
Direct Driven by electronic or by diesel engine
|
|
Starting modeA
|
24V electric start
|
|
Cooling method
|
Industrial air cooling
|
|
Dimension
|
7500*2500*2500mm
|
|
Weight
|
8t
|
|
A Speed
|
Screw compressor speed: 2100 r/min; A piston compressor speed: 740r/min Diesel engine speed: 2100r/min
|
|
Voltage
|
380V, other voltage for special customize for each order
|
|
PLC Controller Screen
|
easy operate with auto&manual
|
|
After-sales Service
|
Engineers available to service overseas
|
|
OEM
|
Welcomed (we have 5professional R&D engineers to do design & customizing service according to client's different requirement)
|
Note: it can according to clients' requirement to add a movable wheel.A
Keepwin Process air/ gas Reciprocating compressors consist of four types that are V type, L type and D type, P type, M type.The exhaust pressure ranges from 0.2Mpa to 49 Mpa. The products are widely used in the industries of national defense,scientific research,petrochemical,nuclear power,parmaceutical,food-stuff and gas separation.No gas pollution and No gas leakage during compression and transportation process.
Why Choose Us
About us
1, the company since 2002 professional to do special design & customize process gas compressor
Equipment & technology
2, the quality of the diaphragm compressor 's important spare part was produced by our own plantA
Service
3, stable product quality , supply, the good faith management, and can do oversea after sales service
Product Processing
Exceptional Performance and EfficiencyThe 30Mpa Ammonia Gas Booster Compressor stands out for its high-pressure output and oil-free operation. Designed as a stationary unit, it ensures consistent, silent performance with minimal vibration. Its direct-driven system delivers reliable power, improving operational efficiency for continuous use in industrial environments.
Tailored for Industrial ApplicationsThis compressor is specifically constructed for environments demanding safe ammonia gas compression. Its robust build, extended size, and grey-white finish highlight its industrial suitability. The oil-free lubrication type supports applications requiring contaminant-free operation, while the silent mode enhances workplace comfort.
Comprehensive Quality and SupportAs a product from reputable distributors, exporters, manufacturers, suppliers, and traders in China, this compressor includes a one-year warranty to safeguard your investment. Coupled with high-quality components like the included motor, customers benefit from dependable performance and reliable after-sales support.
FAQ's of 30Mpa High Pressure Ammonia Gas Booster Compressor:
Q: How does the 30Mpa High Pressure Ammonia Gas Booster Compressor operate?
A: This compressor uses a stationary, reciprocating mechanism with a direct-driven motor powered by AC (380V) to elevate ammonia gas pressure efficiently while maintaining a silent, oil-free operation.
Q: What are the key benefits of an oil-free, silent design in this compressor?
A: The oil-free lubrication prevents contamination of the compressed ammonia gas, making it ideal for sensitive applications, while the silent operation ensures a comfortable and low-noise environment for workers.
Q: When is this compressor typically used in industrial processes?
A: It is utilized whenever there is a need for high-pressure ammonia gas, such as in chemical plants, refrigeration facilities, or any process requiring safe and reliable ammonia compression.
Q: Where can the 30Mpa Ammonia Gas Booster Compressor be installed?
A: Due to its large size and stationary configuration, it is best installed in dedicated industrial environments with sufficient space to accommodate its dimensions (6500x2500x2300mm) and weight (6500kg).
Q: What is the process for maintaining this oil-free ammonia compressor?
A: Regular maintenance includes routine inspection of moving parts, monitoring system gauges, and ensuring clean air intake; since it is oil-free, there is no need for oil changes, reducing maintenance requirements.
Q: How does the one-year warranty support customers?
A: The manufacturer provides a one-year warranty that covers material and workmanship defects, offering customers peace of mind and prompt assistance should any issues arise during the initial period of operation.
