5Nm3/h 12Mpa High Pressure Oil Free Diaphragm Air Compressor About
Product Details

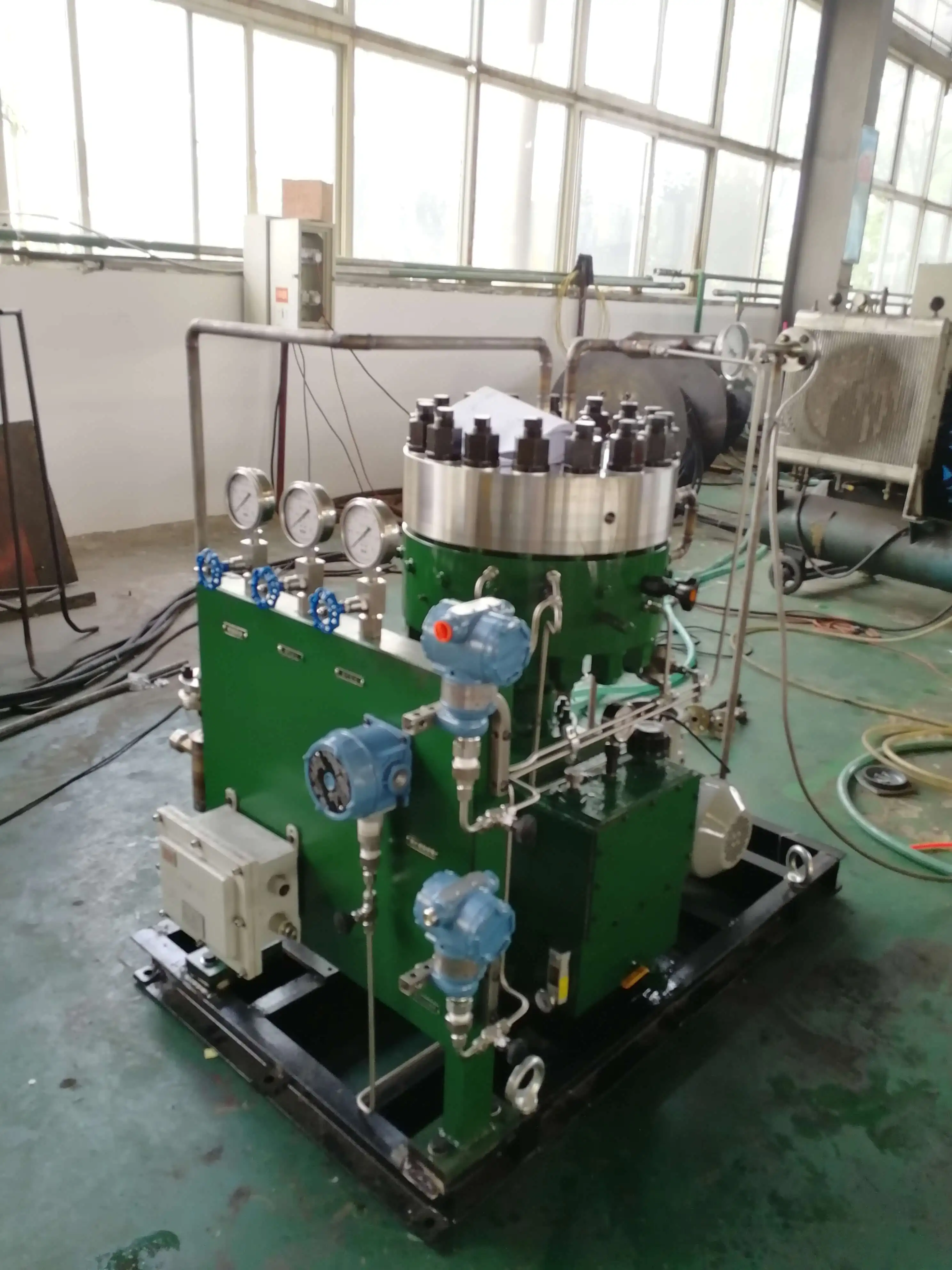

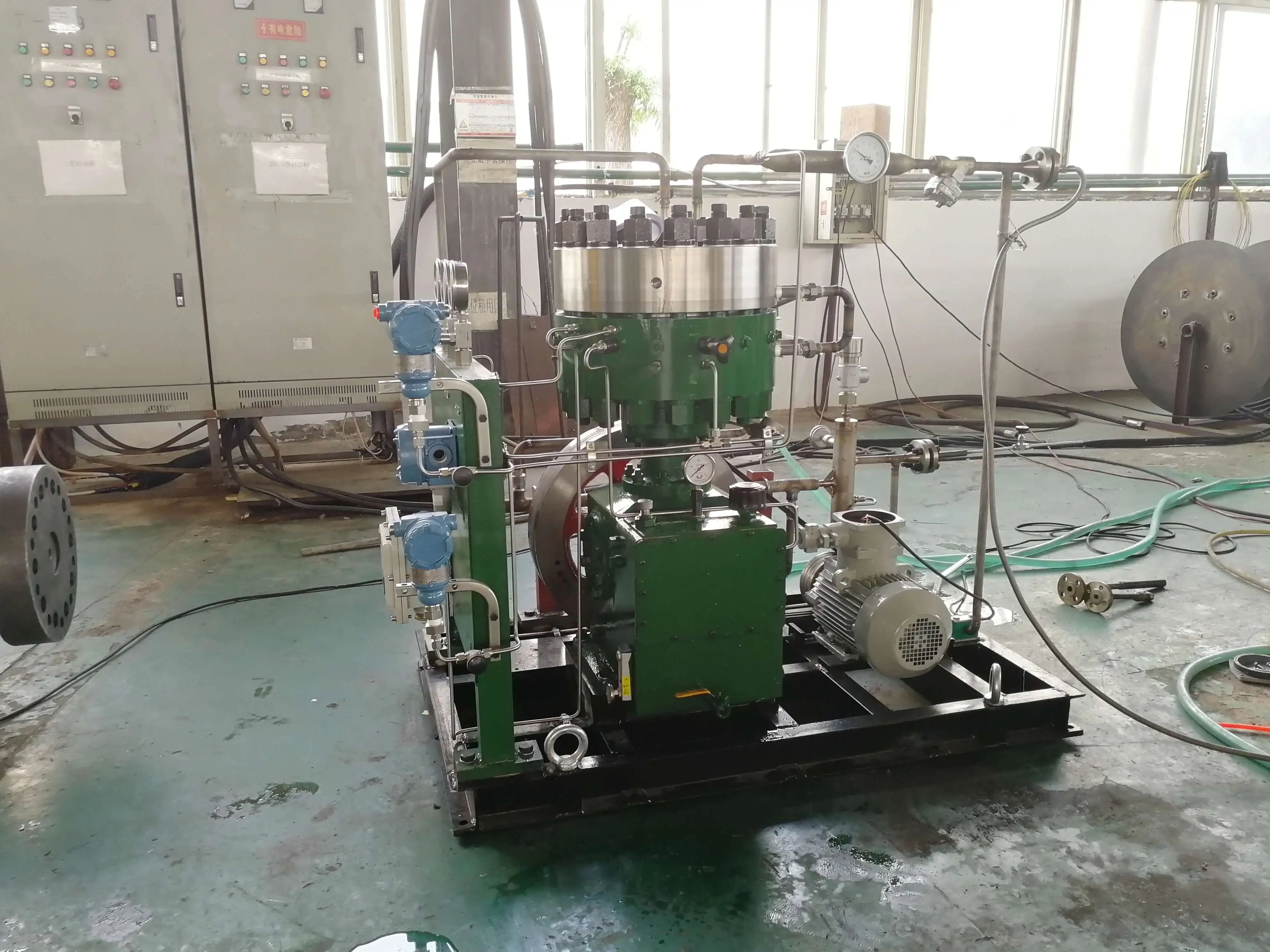

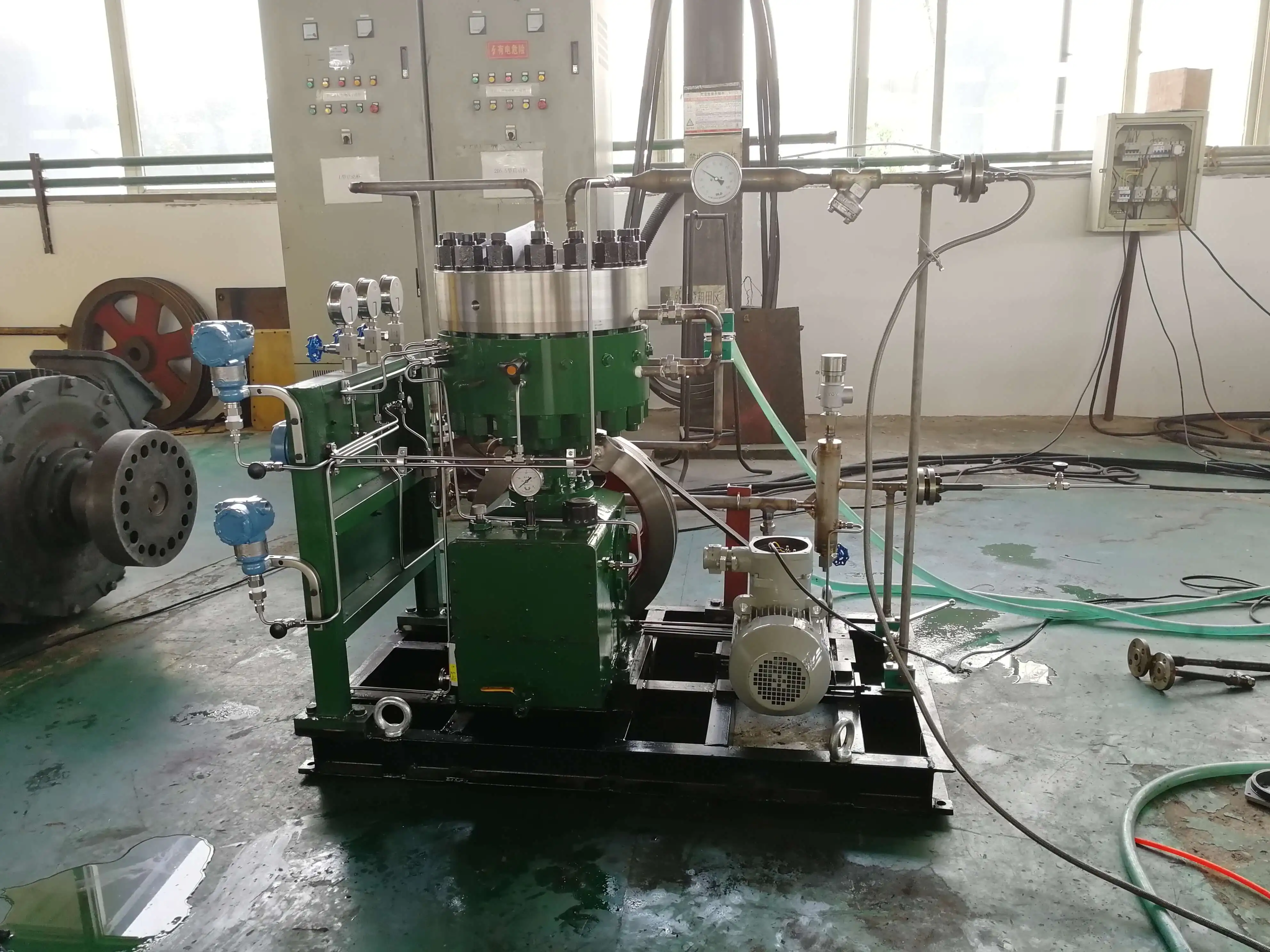

5Nm3/h 12Mpa High pressure oil free diaphragm air compressor
Inquiry Us!Note: for the other customizing process gas compressor, please kindly send below information to our factory to calculate the
producing cost for you
A. The gas compression medium (eg.: the purity of air, oxygen gas, Hydrogen gas, Nitrogen gas. Or the gas composition of flammable
& toxin gas)
B. The flow rate: _____Nm3/hr
C. Suction pressure: _____ Bar
D. Exhaust pressure: _____ Bar
E. Suction temperature? Discharge temperature?
F. Requiring for Cooling water temperature as well as end discharge temperature
G. Local plant's Voltage/Frequency/Phase; _____V____Hz____ph ?
Product Details Show
Belt & Direct Driven connected Coupling Elastic Motor ,with motor guard protector
Professional Engineers Design team & Professional technical communication before production, create and produce high quality oil-free Diaphragm comrpessor, Reciprocating compressor
Confirmed all detail specificaitions with the Customers then sign contract, design drawing in process to ensure every process is perfect. High flow rate and manufacture machine qualified test before shipment.
Product Parameter
|
Product Name
|
BOOSTER PRESSURE 40MPA OIL FREE DIAPHRAGM Air COMPRESSOR
|
|
Compress Medium
|
Airi14H2 hydrogen Gas
|
|
Model No.
|
G2Z-5/30-120
|
|
Type
|
ZV type diaphragm compressor
|
|
Rated flow rate (F.A.D)
|
5Nm3/min
|
|
Power
|
5.5KW
|
|
Suction pressure(G)
|
3.0Mpa
|
|
Rated outlet pressure
|
12Mpa
|
|
Lubricating mode
|
Oil Lubricate
Oilless lubricate
Non oil lubricate
|
|
Transmission mode
|
Belt Driven
|
|
Cooling method
|
Industrial circulating water cooling tower
|
|
Dimension
|
1560*700*1550mm
|
|
Weight
|
700KG
|
|
Motor Speed
|
400 r/min
|
|
Voltage
|
380V, other voltage for special customize for each order
|
|
After-sales Service
|
Engineers available to service overseas
|
|
OEM
|
Welcomed (we have 5professional R&D engineers to do design & customizing service according to client's different requirement)
|
GZ Type Diaphragm Compressor Features
Keepwin diaghragm compressors consist of four types that are Z type, V type, L type and D type.The exhaust pressure ranges from 1.3 to 49 Mpa. The products are widely used in the industries of national defense,scientific research,petrochemical,nuclear power,parmaceutical,food-stuff and gas separation.No gas pollution and No gas leakage during compression and transportation process.
Why Choose Us
About us
1, the company since 2002 professional to do special design & customize process gas compressor

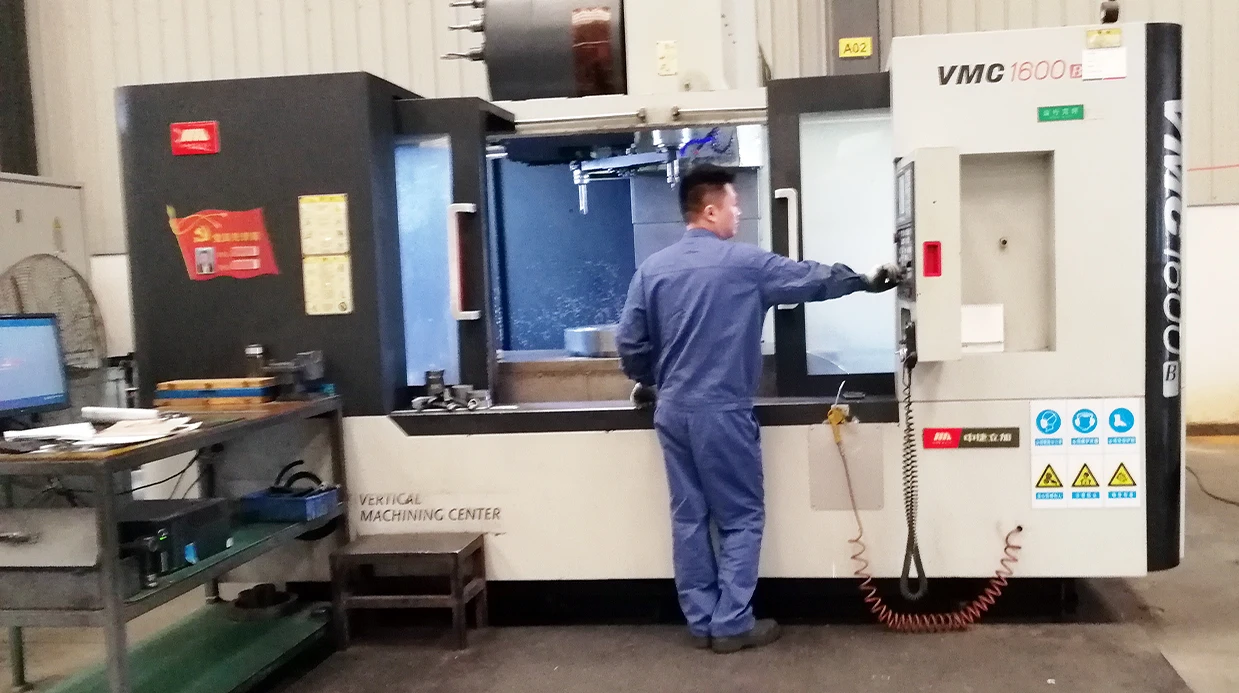

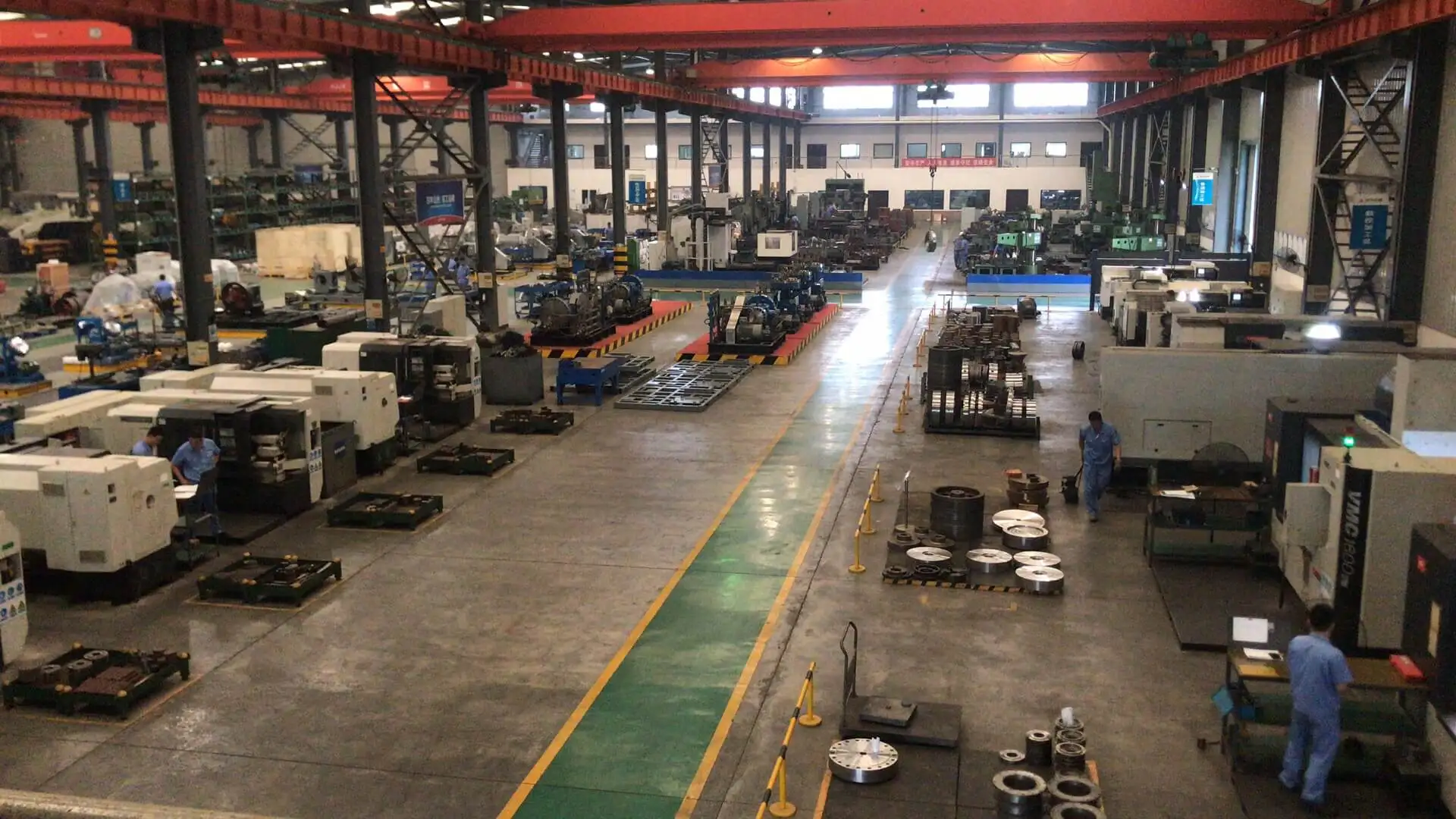

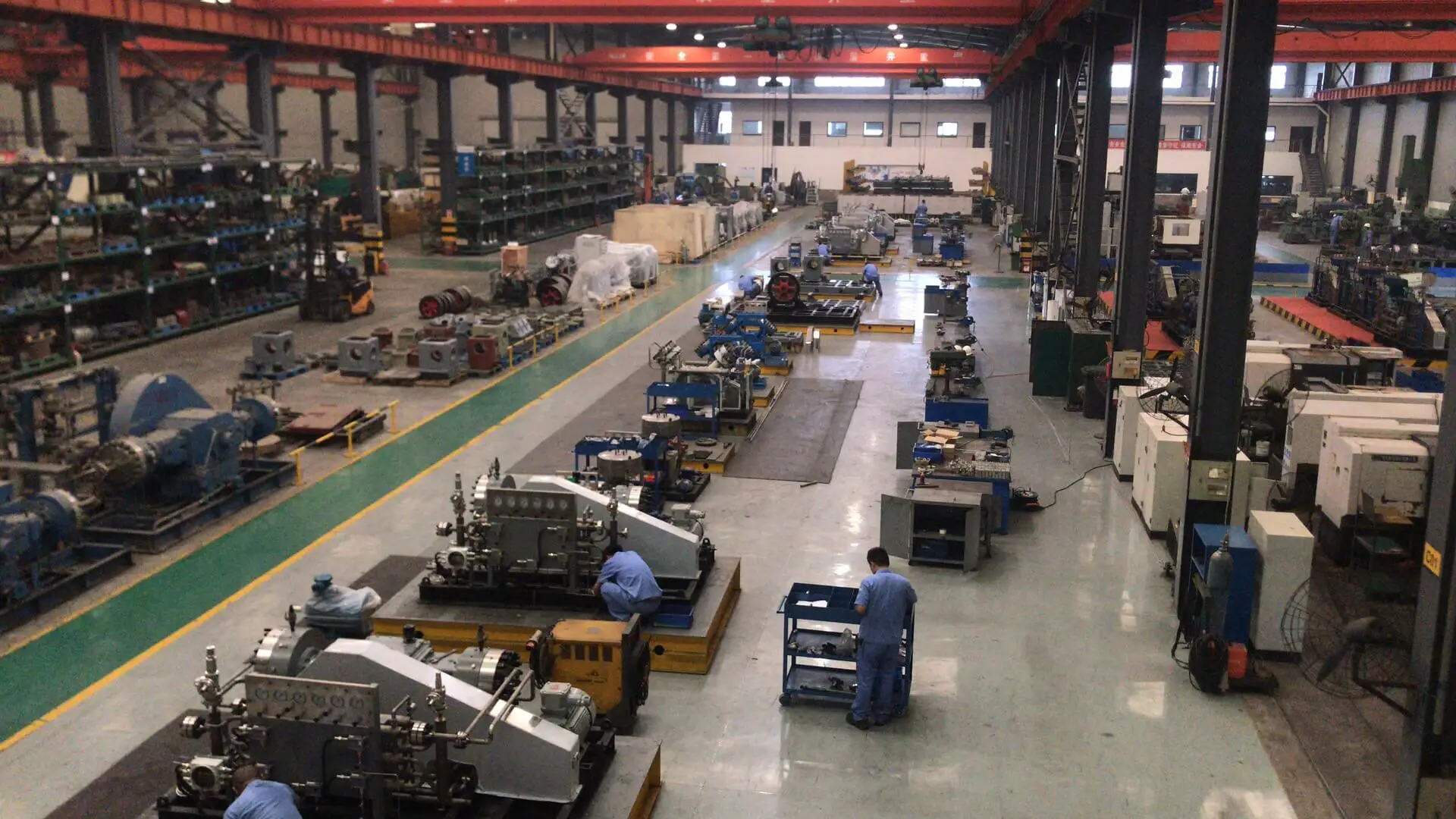

Equipment & technology

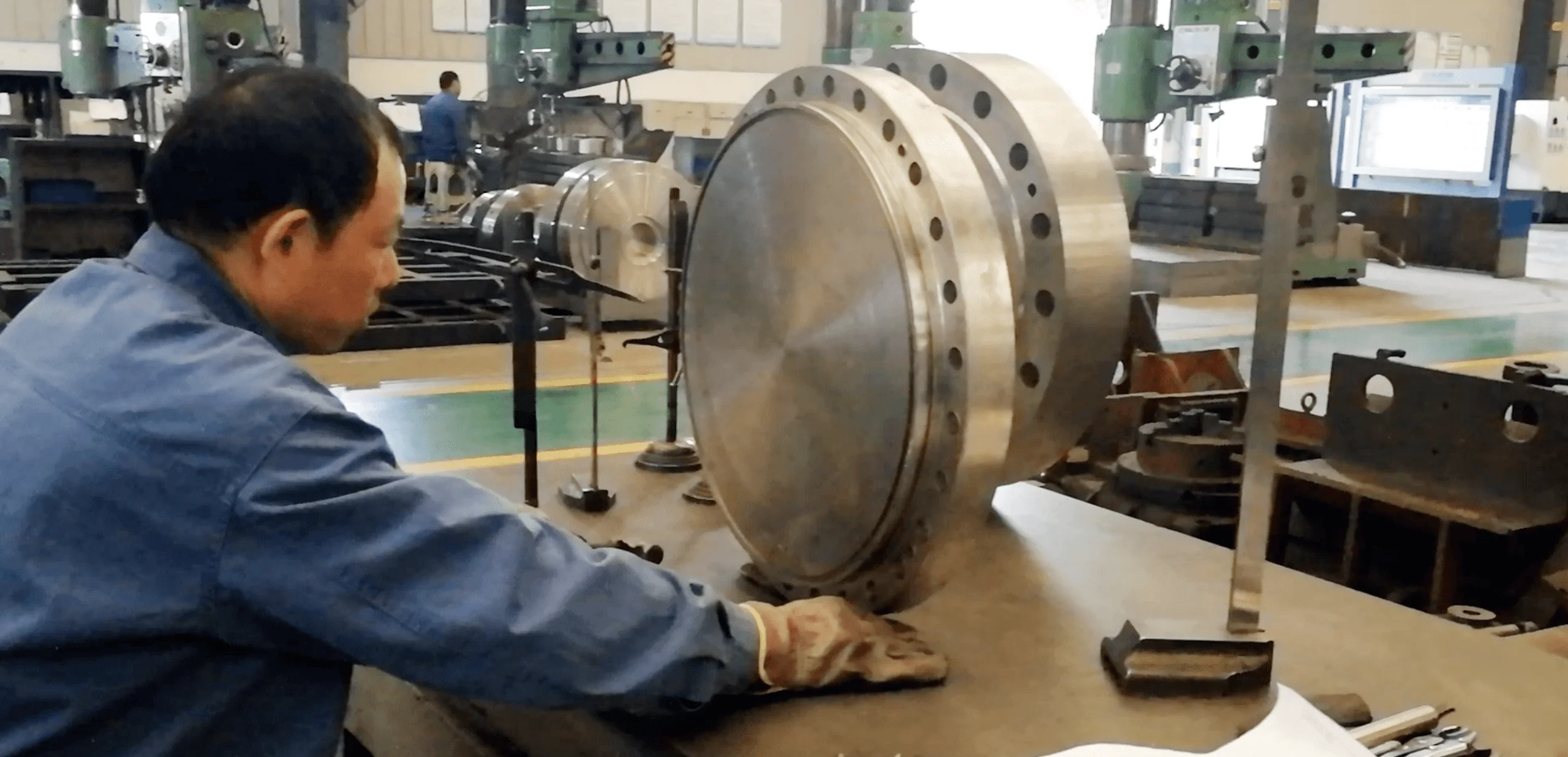

2, the quality of the diaphragm compressor 's important spare part was produced by our own plant
Service
3, stable product quality , supply, the good faith management, and can do oversea after sales service
Precision Oil-Free CompressionThis compressor features a reliable oil-free diaphragm configuration, ensuring that compressed air remains contamination-free. This makes it highly suitable for industries requiring clean air, such as chemical processing and gas separation. Its advanced design eliminates oil carryover issues and reduces maintenance needs, maximizing uptime and product integrity.
Versatile Industrial ApplicationEngineered for versatility, the compressor is ideal for air boosting in petroleum, chemical, textile, and gas separation industries. Its high-pressure capabilities enhance efficiency in demanding applications while the stationary design and silent operation make it suitable for installation in a variety of industrial environments.
Customizable and User-Friendly DesignThe compressor supports a wide range of voltage options, allowing for seamless integration into different power systems worldwide. Its intuitive belt-driven system and modular construction facilitate straightforward setup and operation. The product is available in several colors to suit diverse operational preferences and branding requirements.
FAQ's of 5Nm3/h 12Mpa High Pressure Oil Free Diaphragm Air Compressor:
Q: How does the oil-free diaphragm design benefit industrial applications?
A: The oil-free diaphragm design ensures that compressed air is free from oil contamination, making it ideal for industries where air purity is crucial, such as chemical processing, food production, and gas separation.
Q: What is the typical usage process for this high-pressure compressor?
A: Operators install the compressor in a stationary setting, connect it to the relevant air or gas system, and select the desired power setting based on application needs. The belt-driven motor then efficiently boosts air or gas pressure up to 12Mpa.
Q: Where can this compressor be used most effectively?
A: This compressor is most effective in industrial environments like petroleum and chemical plants, textile factories, and gas separation facilities, thanks to its high pressure, oil-free output, and silent operation.
Q: What are the main benefits of the silent, stationary configuration?
A: The silent operation reduces noise pollution, making it suitable for installation near workspaces, while the stationary setup provides a stable, low-maintenance solution for continuous industrial use.
Q: How is customization handled for different voltage requirements?
A: The compressor can be customized to operate on any voltage, accommodating global installation standards and ensuring compatibility with existing electrical systems.
Q: When should regular maintenance be performed on this compressor?
A: Regular maintenance checks should be performed according to the manufacturer's guidelines, typically every few months, to inspect the diaphragm, belts, and motor for optimal and safe performance.
Q: What warranty coverage is included with this compressor?
A: The product comes with a one-year warranty that covers manufacturing defects, providing peace of mind for distributors, exporters, manufacturers, and end-users.
