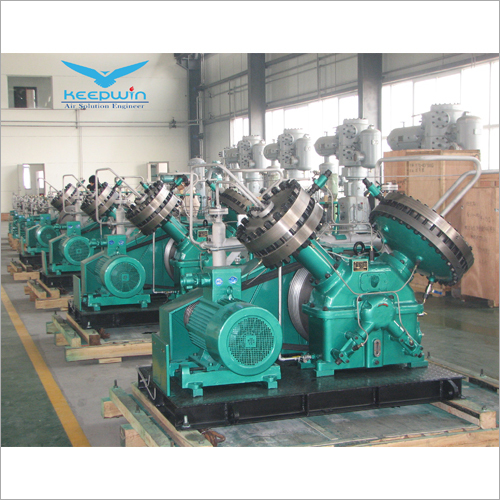

L Type Diaphragm Compressor

L Type Diaphragm Compressor
Send Inquiry
Product Code : KPW-GL4-240/20~200
Brand Name : Keepwin
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets, ,
  • Price
  • 100000 USD ($)
  • Price Range
  • 10000.00 - 200000.00 USD ($)
Product Specifications
  • Product Type
  • Gas Compressor
  • Type Of Compressor
  • Diaphragm
  • Allied Equipment
  • Cylinder
  • Configuration
  • Stationary
  • Power Source
  • Ac Power
  • Silent
  • No
  • Lubrication Type
  • Oil-Free
  • Voltage
  • 380 415 Watt (w)
  • Weight
  • 3800 Kilograms (kg)
  • Size
  • 3450*1380*2330mm
  • Driven Mode
  • belt driven
  • Color
  • Blue
  • Warranty
  • 1Year
Product Description

We have extensive experience in the market that empowers us in emerging as a trusted organization engaged in manufacturing and supplying Propylene Gas Diaphragm Compressor . It is mainly used in medical instrument, spray painting, laboratories and labelling machines. It is designed by using high grade materials and latest technology in compliance with the set industry standards. The offered compressor is rust and corrosion resistant. Moreover, our clients can get this Propylene Gas Diaphragm Compressor  from us at best of market prices.


Diaphragm Compressor

Features of products:

1. Compressed gas is completely sealed from outside, which provides high sealing performance; the compressor of high sealing performance is specially suitable for use to compress gas in radioactive area of nuclear power plant and highly poisonous gas;

2. Owing to nonexistence of lubricant in diaphragm cavity, namely it is impossible for gas to contact any lubricant, there is no problem to compress to higher pressure the dangerous gas and oxygen, fluorinated gas and chlorine, etc;

3. Compared to the compressors of other types, gas will not be polluted by the particles produced due to abrasion of sliding parts, therefore, it is absolutely ensured the same purity of compressed gas as that of the gas when entering compressor. Therefore, it is suitable for high purity gas such as electronic gas, breathing gas and hydrogen used in fuel cell technology;

4. High compression rate. As a result of optimized design of diaphragm cavity curve, maximum deformation of diaphragm under allowable stress is ensured to obtain maximum volume efficiency;

5. Pressure lubrication is adopted for compressor, so the moving parts of compressor have excellent lubrication of hydraulic oil, which minimizes the abrasion of moving parts and reduce maintenance rate;

6. Pressure oil supplement is adopted for compressor, namely, the lubricant, after coarse filtering, is pressurized by passing through gear pump for fine filtering, then enter slippage pump, this kind of pressurized lubricating oil can prevent the occurrence of non-oiling due to the air existing in slippage pump; at the same time it can prevent small particles from entering slippage pump to damage plunger, thus lengthening the service life of slippage pump.

7. Diaphragm alarm device and low-pressure alarm of lubricating oil ensure safety and reliability of operation of compressor;

8. The bolts, nuts and joints of cylinder head are all surface treated; and oil pipes and coolers all adopt stainless steel pipe, providing good appearance of whole machine;

9. Advanced oil-pressure valve is adopted for the display system, providing easy operation;

10. Compressor has good cooling conditions. Oil cooler is equipped in the oil tank of compressor and water jacket is set for middle body, cylinder body and cylinder head, which provide good cooling for compressed oil and gas, thus improving the mechanic performance of compressor;

11. Adoption of modular design. According to the need of user, serial crankcase and diaphragm head are selected to provide wide range of pressure and flow;

12. Low noise level;

13. Spare parts and after-sales service are provided in time for whole service life of product.

GZ type Diaphragm Compressor Technical Parameters
No. Model F.A.D (Nm3/min) Inlet Pressure
( Mpa)
Exhuast Pressure
(Mpa)
Power
(KW)
Speed
r/min
Dimension
(L×W×H)mm
N.W
Weight (t)
Voltage
V

GL4-150/6~200 150 0.6 20 55  400 3450*1380*2330 3.8 380
Trade Information
  • FOB Port
  • Tianjin/Shanghai
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1000sets Per Month
  • Delivery Time
  • 90 Days
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Standard export wooden case and waterproof bags or bubble film ,better protection for compressor machine.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
