2.5Nm3 min discharge pressure 250bar CNG Natural Gas Compressor Price

2.5Nm3 min discharge pressure 250bar CNG Natural Gas Compressor Price

5000-99999 USD ($)/Piece

Product Details:

  • Usage Industrial
  • Type Of Compressor Diaphragm
  • Size 2400*1600*1850mm
  • Configuration Stationary
  • Product Type 250bar CNG Natural Gas Compressor Price
  • Power Source Ac Power
  • Silent No
  • Click to View more
X

2.5Nm3 min discharge pressure 250bar CNG Natural Gas Compressor Price Price And Quantity

  • 5000-99999 USD ($)/Piece
  • 1 Piece

2.5Nm3 min discharge pressure 250bar CNG Natural Gas Compressor Price Product Specifications

  • 1 Year
  • 380V/415V/440V/600V/660V,etc Volt (v)
  • Ac Power
  • Diaphragm
  • 250bar CNG Natural Gas Compressor Price
  • Oil-Free
  • 2400*1600*1850mm
  • Stationary
  • No
  • Industrial
  • Green

Product Description



Introducing the magnificent 2.5Nm3/min discharge pressure 250bar CNG Natural Gas Compressor, model VW-2.5/3-250. This exclusive industrial solution delivers lustrous performance with its soaring 110KW AC power and robust oil-free diaphragm technology. Utilise this offer for reliable CNG compression with customizable voltage options from 380V to 660V. Built for stationary installation, it comes with a full 1-year warranty and expert after-sales service worldwide. Do not miss this promotion-trusted by distributors, exporters, manufacturers, and suppliers across China and beyond.

Premium Industrial Application and Standout Features

The 2.5Nm3/min 250bar CNG Natural Gas Compressor is widely used as a key component in natural gas filling stations, industrial CNG supply systems, and various refueling facilities. Its primary area of application is in high-pressure, oil-free CNG compression. Features of the machine include oil-less operation, belt-driven transmission, industrial circulating water cooling, and a customizable voltage range. Designed for maximum efficiency, it ensures a reliable and safe solution for long-term industrial gas management.


Secure Packaging, Expedited Delivery, and Convenient Payment

Our CNG Natural Gas Compressor is supplied with robust, export-standard packaging to ensure the safe arrival of your investment. Leveraging our express shipping services, customers benefit from minimized expenditure on logistics and fast delivery across main domestic and international markets. Payment terms are designed for convenience and flexibility, including T/T and L/C options. Every order receives tailored care and responsive support, emphasizing efficiency from dispatch to installation.


Specification

Product Name

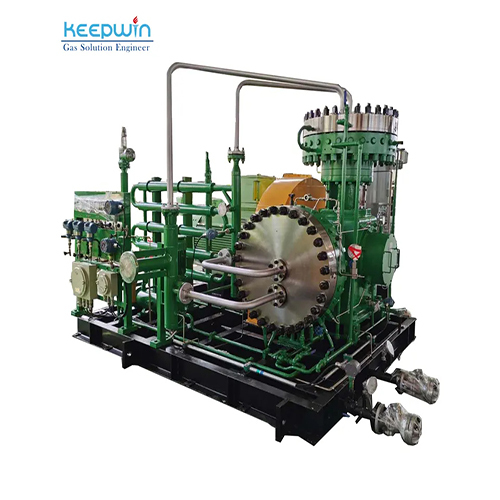

VW-2.5/3-250 Natural Gas CNG Diaphragm Compressor

Compress Medium

CNG Natural Gas Compressor

Model No.

VW-2.5/3-250

Type

VW Reciprocating diaphragm compressor

Rated flow rate (F.A.D)

2.5Nm3/min

Power

110KW

Suction pressure(G)

0.3Mpa

Rated outlet pressure

25Mpa

Lubricating mode

Oil Lubricate

Oilless lubricate

Non oil lubricate

Transmission mode

Belt Driven

Cooling method

Industrial circulating water cooling tower

Dimension

2400*1600*1850mm

Weight

3.5t

Voltage

380V, other voltage for special customize for each order

After-sales Service

Engineers available to service overseas

OEM

Welcomed (we have 5professional R&D engineers to do design & customizing service according to client's different requirement)




FAQ's of 2.5Nm3 min discharge pressure 250bar CNG Natural Gas Compressor Price:


Q: How is the 2.5Nm3/min 250bar CNG Natural Gas Compressor typically installed?

A: The compressor is designed for stationary installation at industrial sites. Engineers are available for on-site service and can assist with customized voltage and configuration when required.

Q: What are the key benefits of using an oil-free diaphragm compressor for CNG?

A: Oil-free diaphragm compressors eliminate oil contamination, ensuring clean gas delivery and reduced maintenance downtime. This is particularly advantageous for applications requiring high purity and reliability.

Q: Where can this CNG Natural Gas Compressor be utilized?

A: This model is ideal for use in CNG refueling stations, natural gas distribution infrastructure, industrial gas supply, and other locations requiring dependable high-pressure gas compression.

Q: What is the process for ordering and customization?

A: Clients may contact our team to specify voltage requirements and any special configurations necessary for their applications. OEM and design customization services are supported by our professional R&D engineers.

Q: When can I expect delivery after placing an order?

A: Orders are promptly processed, with express shipping available for both domestic and international markets. Lead times vary depending on customization and location, but we ensure fast and secure delivery.
