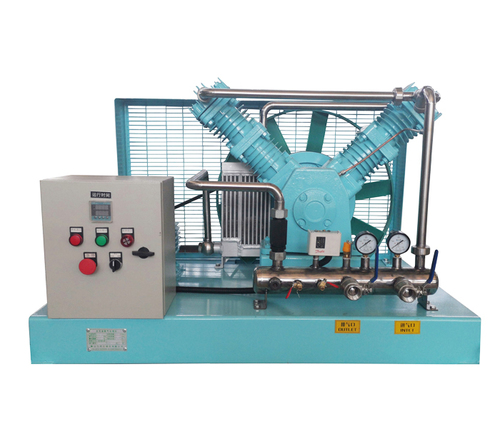

Oil Free 50nm3/H 200bar High Pressure Oxygen Gas Booster Compressor for Filling Cylinder About
2.Power range: 55KW 3.Speed range: 300-600r/min
4.Flow range: 1000Nm/h
5.Inlet pressure:0-0.6MPa
6.Outlet pressure: <25MPa
7.Compression stage: 1-4 stages
If you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working gas medium: If single gas ,how many purity ? if mixed gas , what gas content list ?
*Suction pressure(gauge pressure):_____barg
*Exhaust pressure(gauge pressure):_____barg
*Flow rate per hour for compressor: _____Nm3Compressor gas suction temperature:____
Compressor working hours per day :_____hours
Compressor working site altitude :_____m
Environment temperature : _____
Has cooling water in the site or not ?______
Voltage and frequency for three phase :____________
Do not has water vapor or H2S in the gas ?______
Application for compressor__________
All standard cylinder oxygen filling diaphragm compressor are CE marked to meet the requirements of the EU market. We can also provide customized plant filling oxygen compressor according to customer conditions. Our microboost medical oxygen compressor have the following features According to the different working conditions of the customer:
1. Completely 100% oil free, no oil required (depending on the specific model)
2. Oxygen for PSA Oxygen Generator
3. NO pollution, keep the same purity into the gas
4. RELIABLE and high quality, comparable to the American RIX brand.
5. TOP low cost, low maintenance cost, simple operation, just change the piston ring
6. 4000 hours piston ring working life under low pressure conditions, 1000-2000 hours working life under high pressure conditions
7. High quality high efficient brand motor, can be customized for high sea level use with more long service life.
8. CE approved to meet the requirements of the EU market
9. According to the customer's specific working conditions, the compressor is designed for single machine compression, two-stage compression, three-stage compression and four-stage compression.
10. Low speed, long life, average speed 360-760RPM
11. Low noise, average noise below 75dB, can work quietly in the medical field
12. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.
13. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.
High-Pressure, Oil-Free CompressionThis piston-type compressor delivers high purity oxygen pressurization up to 200bar, entirely oil-free to prevent contamination, making it suitable for critical applications in medical, industrial, and laboratory settings.
Robust Engineering with Flexible CustomizationBuilt with a durable, compact design and belt-driven system, it is available in multiple color options and accommodating various voltage standards, meeting diverse user needs. The stationary installation ensures stable and safe performance.
User-Focused Operation and WarrantyOperating quietly due to its silent motor and effective configuration, the compressor is suitable for environments where noise reduction is essential. An 18-month warranty from shipping date provides assurance for long-term reliability.
FAQ's of Oil Free 50nm3/H 200bar High Pressure Oxygen Gas Booster Compressor for Filling Cylinder:
Q: How does the oil-free compressor ensure pure oxygen delivery when filling cylinders?
A: The compressor employs an oil-free piston mechanism, eliminating oil contamination risks during the compression process. This ensures the oxygen that is pressurized and filled into cylinders maintains high purity, suitable for medical and industrial applications.
Q: What is the process for operating this high-pressure oxygen gas booster compressor?
A: To operate the compressor, connect it to a compatible AC power source (415V/50Hz/3ph or customized), secure the oxygen supply, and attach the cylinders. The belt-driven motor quietly boosts the pressure up to 200bar, efficiently filling cylinders without manual intervention.
Q: When should this compressor be used over a lubricated alternative?
A: Choose this oil-free compressor when your application requires uncontaminated, high-purity oxygen, such as in medical, food processing, or laboratories. It is preferred over lubricated models for any situation where oil traces in the gas must be strictly avoided.
Q: Where is installation of this stationary compressor recommended?
A: Install the stationary compressor in well-ventilated indoor facilities such as medical gas plants, gas distribution centers, or industrial sites. Its compact design and quiet operation make it suitable for both small and large-scale settings.
Q: What are the main benefits of belt-driven and silent design features?
A: The belt-driven system reduces vibration and noise, resulting in quieter operation and improved component lifespan. The silent motor ensures a comfortable working environment and makes this compressor ideal for locations where minimal noise is essential.
Q: Can the compressor accommodate different voltage requirements?
A: Yes, while the standard voltage is 415V/50Hz/3ph, the unit can be customized to meet various voltage specifications, facilitating use in different countries and power infrastructures.
Q: What warranty and after-sales support are provided with this compressor?
A: Each unit includes an 18-month warranty starting from the shipping date. This covers manufacturing defects and ensures reliable support for users during the initial period of operation.
