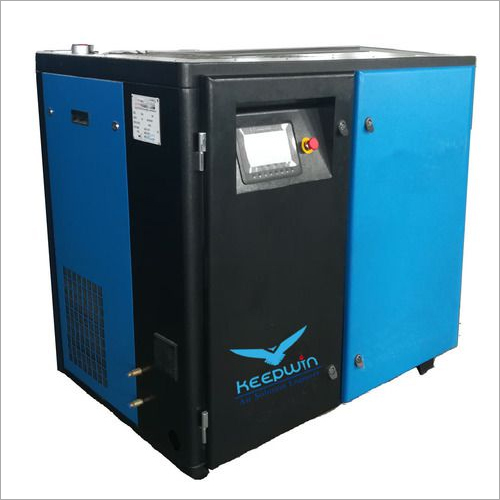

Two Stage Screw Air Compressor

6000.00 - 50000.00 USD ($)/Set

Get a Price/Quote

Product Details:

Type Of Compressor Rotary
Allied Equipment Compressor Head
Configuration Stationary
Power Source Ac Power
Silent No
Lubrication Type Lubricated
Voltage any voltage be customized 380V/400V/415V/460 Watt (w)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Two Stage Screw Air Compressor Price And Quantity

Minimum Order Quantity 1 Set
Price Range 6000.00 - 50000.00 USD ($)/Set

Two Stage Screw Air Compressor Product Specifications

Type Of Compressor Rotary
Warranty 1year
Allied Equipment Compressor Head
Power Source Ac Power
Silent No
Voltage any voltage be customized 380V/400V/415V/460 Watt (w)
Driven Mode Direct drive
Configuration Stationary
Lubrication Type Lubricated

Two Stage Screw Air Compressor Trade Information

FOB Port Tianjin/Shanghai
Payment Terms Letter of Credit at Sight (Sight L/C), Paypal, Letter of Credit (L/C), Western Union, Telegraphic Transfer (T/T)
Supply Ability 5000 Set Per Year
Delivery Time 30 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard export wooden case and waterproof bags or bubble film ,better protection for compressor machine.
Main Export Market(s) Australia, North America, Eastern Europe, Western Europe, Middle East, Central America, Africa, South America, Asia
Main Domestic Market All India
Certifications CE

Product Description

Resistant to high working pressure
Reliable sliding parts and components
Improved efficiency
Just right for hot water heaters in cold climates
Minimized noise and vibration levels
Compact size and light weight
Energy Saving Analysis of Two Stage Screw Compressor
Power range: 20Hp ~ 600Hp
Customize Working Pressure: 6-16Bar
Normal working pressure: 7bar/8bar/10bar/13bar
The first time compressed air go through fuel injection cooling,after Lowered the two stage suction temperature,do the second same pressure compression.
Two stage compressor using the same pressure ratio to set the air end space pressure. So each stage compression ratio is less than single stage compression ratio.The amount of the back-flow leakage between the rotors is greatly reduced, and the volumetric efficiency and the adiabatic efficiency are greatly improved.
Under the same power, the two stage compressor compressed air is more 15% higher than single stage compressor, and can achieve up to 15% energy saving.

Welcome to join us !

We Consider Our Customers as Our Friends and Families, and We do Believe in the Win-Win Situation for Building up Long-Term Relationship.

Innovation

Provide innovative, stable products and services.

Quality

Deliver consistently superior performance and pursue every possible improvement.

Agility

Identify emerging trends and act quickly to acquire new opportunities.

Customer Satisfaction

Anticipate customer needs and exceed their expectations.

Warranty

Within 12 months since the customer used,or 18 months since shipped from factory, no matter which expires, we ensure that no defects for material and manufacturing.

OEM & ODM

According to the customer's requirements to customize OEM or ODM products. And in order to let our customer to receive the whole good quality products, we packed all of the goods by polywood case free for them.

Technical specification

Model	Max working pressure(bar/Psi)	F.A.D(air delivery)(m3min cfm	Motor power (KW/HP)	Outlet pipe dia	N.W(KG)	Size L x W x H (mm)
KP-LR-30S	8/116	6.2/226	30/40	G1-1/2	1080	1650x880x1280
	10/145	4.9/173
	13/189	4.2/148

Quick Details
Condition:	New	Brand Name:	KEEPWIN	Motor speed	2950rpm
Power Source:	AC power	Model:	KP-LR-30S	Motor power	30KW /40HP
Type:	Screw Compressor	Voltage:	220V/380V/400V/415V/440V/ 600V/660V,etc	Suitable Medium	Air
Configuration	Stationary/ Skid	Air Delivery	6.4m3/min (226cfm/min)	Insulation	Class F
Noise	78dB	Inlet Pressure	Atmosphere	Color	Customized is accepted
Lubrication Style:	Oil Lubricate	Working Pressure	8bar	Temperature rise;	Class B
Drive Mode	Direct Drive	Weight:	1080kgs	Diameter of outlet	G 1"
After-sales Service	Engineers available to service overseas	Cooling method	air cooling	Environment temperature	-5 to +45 deg C
OEM:	Welcomed	Dimension	16508801280mm	Warranty	12 Months
Package: According to the customer's requirements to customize OEM or ODM products. And in order to let our customer to receive the whole good quality products, we packed all of the goods by polywood case free for them.

Advanced Two Stage Compression

Experience efficient air delivery and long-lasting performance with the two stage screw design. This construction ensures higher compression ratios, consistent pressure output, and lower energy consumption, making it ideal for demanding industrial environments.

Customizable Power Options

The compressor supports various voltage configurations, including 380V, 400V, 415V, and 460V, providing flexibility to adapt to different regional electrical standards. This makes installation straightforward no matter your location.

Reliable and Lubricated Operation

The lubricated rotary system ensures reduced wear and heat generation, enabling smooth and reliable operation over extended periods. This leads to less frequent maintenance and greater durability compared to non-lubricated variants.

FAQ's of Two Stage Screw Air Compressor:

Q: How does the two stage screw air compressor operate?

A: The compressor employs a two stage rotary screw system, which compresses air in two phases for enhanced efficiency and consistent pressure. This design reduces energy usage and produces higher output compared to single stage models.

Q: What voltage options are available for this air compressor?

A: The compressor can be customized to operate at different voltage levels, including 380V, 400V, 415V, or 460V, allowing it to seamlessly fit electrical systems in various regions.

Q: When is lubrication necessary for this compressor?

A: The compressor is designed as a lubricated type, meaning lubricant is always required during operation to minimize friction, dissipate heat, and ensure longevity of the moving components.

Q: Where can this compressor be installed?

A: Due to its stationary configuration, the compressor is best suited for installation in industrial settings such as manufacturing plants, workshops, or factories where continuous, reliable air supply is essential.

Q: What process is involved in customizing the voltage of the air compressor?

A: When placing your order, specify your required voltage, and the manufacturer will configure the compressor's electrical components during production to match your regional specifications.

Q: How is the compressor maintained for optimal performance?

A: Regular lubrication, periodic filter replacement, and scheduled inspection of the compressor head and drive are recommended. Adhering to manufacturer guidelines ensures optimal performance and extends the equipment's lifespan.

Q: What are the main benefits of choosing this two stage screw air compressor?

A: Key benefits include high energy efficiency, reliable continuous operation, reduced noise levels for industrial settings, easy voltage customization, and strong durability backed by a 1-year warranty.
