Product Description

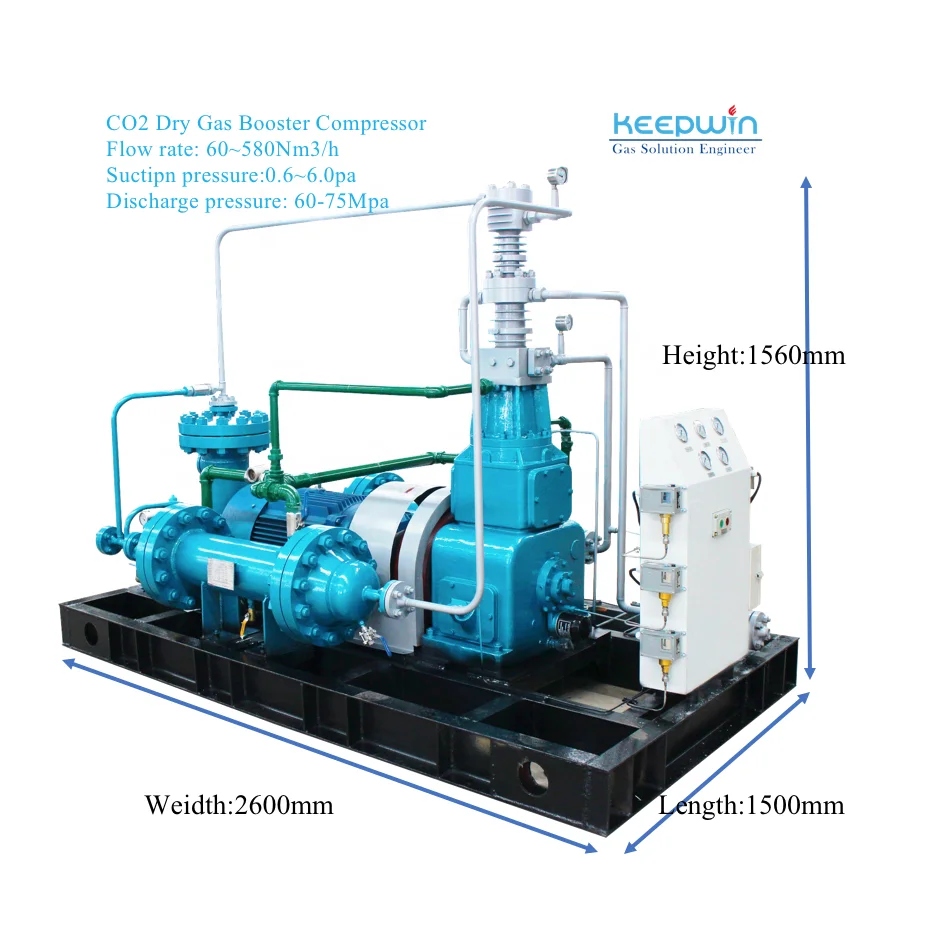

CO2 Carbon Dioxide Recovery Compressor is Z type, Oil-Free Air Cooling for Compressor Cylinder, Water cooling for Gas Medium (CO2), Two Stage, Differential Reciprocating Piston Compressor;
Special instructions: the compressor does not need to be equipped with a pressure reducing valve and does not need to be throttled and depressurized. It can save energy and simplify the control system. The compressor itself can adaptively operate in a wide range of variable condition inlet pressure, and its operation is simple and reliable.
Main purpose and scope of application
1. The compressor cylinder is lubricated with less oil. The piston ring, filling, and cylinder all have a long service life.
2. Ion nitriding technology is used on the surface of the high-pressure cylinder in a compressor to improve the surface hardness of the cylinder and reduce the wear of the cylinder chamber to the lowest value.
3. The compressor is driven by a motor, motor and compressor are directly connected by tire coupling, which has high transmission efficiency.
4. Eliminate leakage of CO2 gas compressor: The material of the throttle ring and seal ring in packing parts is filled with PTFE, and the material of the throttle ring and scraper ring is tin bronze.
5. Cylinder water cooling, whole machine air cooling; Cylinder and packing oil-less lubrication.
6. Cost control of Valves: Valves are made of famous domestic products. The first and second stage inlet and exhaust valves are made of mesh valves. The third and fourth stage inlet and exhaust valves are grouped into groups. Closing valves and air valves are made of stainless steel.
Packaging & Shipping
Reliable CO2 Pressure Boosting SolutionEngineered for performance, the ZW-0.16/(6-60)-75 CO2 Recovery Gas Booster Compressor ensures efficient CO2 transfer by safely increasing gas pressure. Its oil-less and silent design guarantees clean operation, making it suitable for sensitive environments where contamination and noise need to be minimized. The direct-driven system and robust construction provide stable output and longevity.
User-Friendly, Low-Maintenance DesignThis compressor is designed to require minimal maintenance, thanks to its oil-less mechanism and high-quality components. Operators benefit from easy installation, straightforward handling, and a convenient warranty period of one year. The direct-driven motor reduces wear and increases reliability, ensuring consistent performance in demanding terms.
FAQ's of ZW-0.16/(6-60)-75 CO2 Recovery Gas Booster Compressor:
Q: How does the ZW-0.16/(6-60)-75 CO2 Recovery Gas Booster Compressor increase gas pressure?
A: This compressor utilizes a reciprocating mechanism to inject, compress and boost CO2 pressure efficiently. By raising the gas's pressure level, it facilitates downstream industrial processes where higher CO2 pressure is required.
Q: What are the key benefits of using an oil-less, silent compressor for CO2 applications?
A: The oil-less operation means there is no risk of oil contaminating the CO2, making it ideal for food, beverage, and sensitive industry applications. Its silent functionality minimizes operational noise, enhancing the working environment's comfort and safety.
Q: When should I consider using a CO2 booster gas compressor like this?
A: You should use this compressor when your application requires a higher CO2 pressure than standard supply or retention systems can provide, such as in industry processes, beverage carbonation, or greenhouse enrichment.
Q: Where can this compressor be installed and operated safely?
A: The ZW-0.16/(6-60)-75 compressor can be installed in well-ventilated industrial environments with access to 380V AC power. Its stationary and robust design ensures safe usage in facilities managing CO2 recovery and high-pressure processes.
Q: What is the process for maintaining the compressor during its warranty period?
A: Thanks to its oil-less technology, maintenance is straightforward and limited to routine checks, keeping the machine clean, and ensuring all connections and the pump operate efficiently. The one-year warranty covers manufacturing defects and ensures support if issues arise.
Q: How can this compressor be integrated into an existing CO2 recovery system?
A: The unit's direct-driven, stationary design makes it easy to incorporate into existing infrastructure. It can be plumbed into upstream and downstream equipment using standard connections, and AC power supply installation is straightforward.
