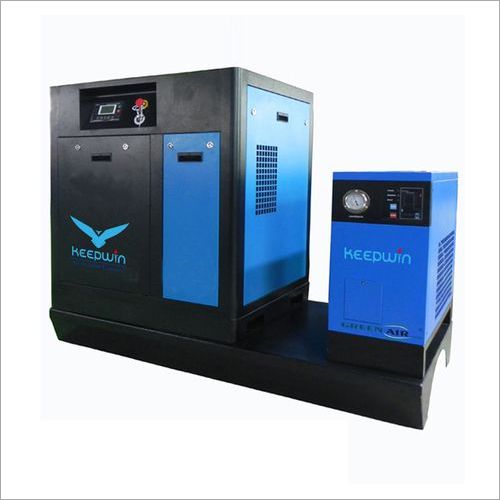

Rotary Screw Air Compressor About
- Power range: 5.5hp ~ 60hp
- Pressure: 7-12.5 Bar
- Intelligent microcomputer control system
- IP54/IP55 high quality motor
Technical specification
| Model | Moter power (KW/HP) | power (HP) | Air deliveery(m3/min) | Working pressure (bar) | Lubricant oil (L) | Outlet pipe dia | L x W x H (mm) | N.W (KG) |
| KPW-B-7.5 | 7.5 | 10 | 1.2 | 7 | 8 | G3/4 | 800x695x830 | 280 |
| 1.1 | 8 |
| 1 | 10 |
| 0.8 | 13 |
| KPW-B-11 | 11 | 15 | 2.0 | 7 | 8 | G3/4 | 800x695x1100 | 300 |
| 1.6 | 8 |
| 1.42 | 10 |
| 1.14 | 13 |
| KPW-B-15 | 15 | 20 | 2.5 | 7 | 40 | G3/4 | 1150x800x1100 | 390 |
| 2.3 | 8 |
| 2.0 | 10 |
| 1.75 | 13 |
Advanced Twin-Screw Rotary TechnologyFeaturing cutting-edge twin-screw compressor technology, this air compressor ensures low vibration, high efficiency, and a prolonged service life. Its precise design promotes consistent airflow and stable performance, making it ideal for continuous industrial applications with demanding workloads.
Intelligent Digital Touchscreen ControlThe integrated digital touchscreen panel with microprocessor-based control allows for easy monitoring and adjustment of operating parameters. Users benefit from simplified troubleshooting, performance tracking, and optimized energy management for enhanced productivity and maintenance planning.
Designed for Safety and VersatilityBuilt with an IP55 protection class and robust mild steel body, the compressor withstands harsh working environments. Its floor-mounted configuration ensures stability, while low noise levels (65 dB) support quieter operations. Allied accessories, such as air dryers and receivers, further extend its functionality and adaptability to various industrial needs.
FAQ's of Rotary Screw Air Compressor:
Q: How does the twin-screw technology benefit rotary screw air compressors?
A: Twin-screw technology provides smooth, continuous air delivery with reduced noise and vibration, which increases efficiency, minimizes maintenance, and extends the compressor's lifespan. It is especially suited for demanding industrial environments requiring reliable and consistent airflow.
Q: What is the function of the digital touchscreen display on this compressor?
A: The digital touchscreen display enables users to easily monitor real-time performance data, adjust operational settings, and access diagnostic information, streamlining daily operations and facilitating swift maintenance.
Q: When should an air dryer and receiver be used with this compressor system?
A: An air dryer and receiver should be used when you require clean, moisture-free air for sensitive applications or processes, helping to prevent equipment damage and improve product quality. Together, they enhance system efficiency and air storage capacity.
Q: Where is the best setting for installing this rotary screw air compressor?
A: This floor-mounted, stationary compressor is best installed in a well-ventilated area with low humidity and within its specified ambient temperature range (5C to 45C) to ensure optimal performance and longevity.
Q: What is the process for routine maintenance of this oil-lubricated compressor?
A: Routine maintenance includes monitoring oil levels, periodically changing filters (pre-filter and fine filter), checking for leaks, inspecting the belt drive, and cleaning air intake vents to maintain efficiency and prevent component wear.
Q: How does the IP55 protection class improve the compressor's usage?
A: The IP55 protection rating shields the compressor from dust ingress and low-pressure water jets, allowing for safer and more reliable operation in industrial environments with challenging conditions.
